Types of Semi Supervised Machine Learning Algorithms

In this article, we attempt to demonstrate extensively our understanding of the different semi supervised machine learning algorithms. The present Machine Learning algorithms can be comprehensively characterized into three classifications, Supervised Learning, Unsupervised Learning, and Reinforcement Learning.

Throwing Reinforced Learning away, the essential two classes of Machine Learning algorithms are Supervised and Unsupervised Learning.

The essential distinction between the two is that Supervised Learning data set have an output label related to each tuple while Unsupervised Learning data set don’t.

The most essential drawback of any types of supervised learning algorithm is that the data set must be hand-labelled either by a Machine Learning Engineer or a Data Scientist.

This is an excessive cycle, particularly when managing huge data sets of information. The most essential disadvantage of Unsupervised Learning is that its application range is restricted.

To counter these hindrances, the idea of Semi-Supervised Learning was presented. In this sort of learning, the algorithm is trained upon a blend of labelled and unlabelled data sets.

Regularly, this blend will contain a small quantity of labelled data and a lot of unlabelled data. The fundamental system included is that first, the software engineer will group comparative data utilizing an unsupervised learning algorithm, and afterwards use the current labelled data to label the remainder of the unlabelled data.

The ordinary use instances of such sort of algorithm have a typical property among them – The procurement of unlabelled data is generally not that much while labelling the mentioned data is quite expensive.

Semi supervised machine learning algorithms are applied in a variety of businesses beginning from fintech and ending with entertainment applications. In banking, ML frameworks assume an indispensable role since they help associations to build data security.

Semi-Supervised - PRIMO.ai
source: simple learn

Semi Supervised Machine Learning Algorithms, Why is it important?

At the point when you need more labelled information to create a precise model, and you don’t have the capacity or resources to get more information, you can utilize semi-supervised algorithms to build the size of your training data set.

For instance, imagine you are building up a model planned to identify extortion for a huge bank. Some misrepresentation you think about, however different cases of extortion are sneaking past without your insight.

You can name the input data set with the misrepresentation cases you’re thinking of, yet the remainder of your input data will stay unlabelled:

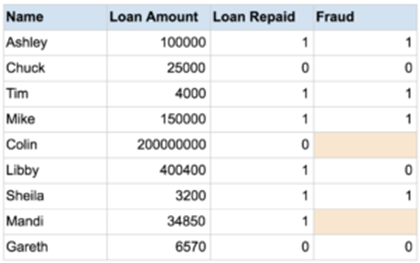

Figure 1: Unlabelled

You can use a semi-supervised learning algorithm to label the data, and retrain the model with the recently labeled data set:

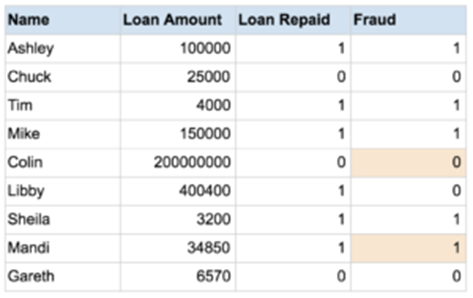

Figure 2: Data after labelling

At that point, you apply the retrained model to new data, all the more precisely recognizing extortion utilizing supervised AI techniques.

Nonetheless, it is highly unlikely to confirm that the algorithm has delivered labels that are 100% correct, bringing about less reliable results than traditional supervised methods.

Different Types

Semi-supervised learning (SSL) is a study that productively exploits an enormous sum of unlabeled data to improve execution in the condition of restricted labelled data.

The majority of the traditional SSL methods accept that the classes of unlabelled data are included for the arrangement of classes of labelled information.

Likewise, these techniques do not sort out useless unlabeled examples and utilize all the unlabeled information for training, which isn’t appropriate for reasonable circumstances.

In this section, we discuss various types of semi-supervised learning algorithms.


Self-training techniques have for quite some time been utilized for semi-supervised learning. It is a resampling method that over and over labels unlabeled training samples dependent on the certainty scores and retrains itself with the chosen pseudo-annotated data. This technique can likewise be sorted as a self-training strategy.

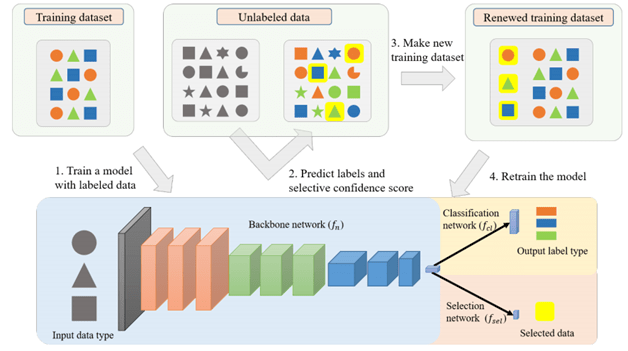

The figure below shows a diagram of an SSL framework. Since the proposed algorithm depends on the self-training, we follow its learning cycle. This process can be formalized as follows. (I) Training a model with labelled information. (ii) Predicting unlabeled data with the trained model. (iii) Retraining the model with labelled and chosen pseudo-labelled data. (iv) Repeating the last two steps.

Figure 3: Representation of an SSL framework

In any case, most self-preparing strategies expect that the labelled and unlabeled data are produced from the indistinguishable appropriation. In this way, in true situations, a few cases with low probability as per the distribution of the labelled information are probably going to be misclassified.

Thus, these incorrect examples altogether lead to more awful outcomes in the next training step. To avoid this issue, we adopt the collection and adjusting techniques to choose dependable examples.

Graph-based semi supervised machine learning

Graph-based SSL algorithms are a significant sub-class of SSL algorithms that have got a lot of consideration lately.

Here, one accepts that the data (both labelled and unlabelled) is inserted inside a low-dimensional complex that might be sensibly communicated by a graph.

All data sample is represented by a vertex in a weighted chart with the loads giving a proportion of closeness between vertices. Hence, adopting a graph-based strategy for tackling an SSL issue includes the following steps:

  1. Graph development (if no info chart exists),
  2. Infusing seed marks on a subset of the nodes, and
  3. Inferring labels on unlabeled nodes in the graph.

Also, graph-based semi-supervised learning develops a graph from the information. Rather than grouping, in any case, a portion of the data is labelled. The issue is common to either label the unlabeled points (transduction) or, all the more, for the most part, to construct a classifier characterized all in all space.

This might be finished attempting to locate the base cut, which respects the labels of the information directly, or, using Graph Laplacian as a penalty useful.

As stated before, numerous data collections of current interest are normally represented by a graph. For instance, the Web is a hyperlinked graph, the social network is a diagram, and communication networks are diagrams, and so on.

As SSL depends on the reason that a lot of unlabeled data improve execution, it is significant for SSL algorithms to scale. This is important in numerous application spaces where the capacity to deal with huge datasets is essential.

Compared with other (non-graph based) SSL algorithms, many graphs based SSL methods can be effortlessly parallelized.

Low-density Separation

The decision boundary should lie in a low-density region. The comparability is anything but difficult to see: A decision boundary in a high-density region would cut a bunch into two unique classes; numerous objects of various classes in a similar cluster would require the boundary limit to cut the bunch, i.e., to experience a high-density region.

Even though both formulae are skilfully the same, they can inspire various algorithms. The low-density form likewise gives extra instinct why the supposition that is reasonable in some real-world issues.

Think about digit recognition, for example, and assume that one needs to figure out how to recognize a transcribed digit “0” against digit “1”.

An example message understood precisely from the decision boundary will be between a 0 and a 1, probably a digit looking an extremely prolonged zero. In any case, the likelihood that somebody composed this “strange” digit is very small.

Case Studies of Semi Supervised Machine Learning Algorithms


Semi-supervised algorithms are applied in a variety of businesses starting from fintech and ending with entertainment applications. In banking, ML frameworks play a crucial part since they help associations to build data security.

For example, there is a sample of individuals who are at present clients of the bank. The developer must create software that makes it simpler for the organization to identify extortion.

The designer knows a couple of instances of cybercrime, and he enters every one of them into the knowledge base.

He doesn’t have any idea about the other cases, and his task is to identify all cases to avoid misrepresentation later on. Since the designer doesn’t check the information that should be identified, it should be found by the machine to keep working.

The observer labels the known data for the program and empowers the framework to learn utilizing this data. For this situation, the framework will be prepared based on existing samples and algorithms presented by the developer, however, will likewise identify informational indexes that don’t have a definite outcome and work with them.

In such conditions, semi-supervised algorithms work the best as they join the features of both controlled and uncontrolled frameworks.

Human interference is expected to translate or decrypt the gathered information, conduct experiments that require third-party objects or locations and actual presence.

Nonetheless, big data frameworks require an alternate methodology. It very well may be trying for the developer to label patterns manually, so he needs an automated framework to substitute human work.

For this situation, specially trained experts are expected to work with knowledge bases. Although a human-based methodology is sensible for this situation, it very well may be resource-consuming and wasteful.


Semi-supervised frameworks have been broadly applied in education throughout the previous quite a long while. For instance, when a teacher at school gives assignments and solves them along with students, students enter specific information to locate the correct answer for it.

This methodology is like the one utilized with labelled data in a program. At that point the instructor gives schoolwork, and students figure out how to tackle those assignments on their own utilizing recognizable algorithms.

However, just several tasks have a similar structure and arrangement algorithm. Along these lines, under the management of a teacher, students gradually figure out how to take care of all new instances of issues, which were not at first discovered in the classroom.

This way to deal with instruction is exceptionally effective. Hence, it has been effectively applied in AI and ML frameworks.

Text Document Classifier

Another basic example of an application of semi-supervised learning is a text document classifier. This is the kind of circumstance where semi-supervised learning is ideal since it would be almost difficult to locate a lot of labelled content archives.

This is basically because it isn’t time effective to have an individual read through the whole book archives just to assign it a basic solution.

In this way, semi-supervised learning takes into account the algorithm to gain from a limited quantity of labelled text records while as yet arranging a lot of unlabelled content reports in the training data.


In a period where the amount of information accessible is continually developing dramatically, unsupervised data basically can’t stop and wait for those labels will get up to speed.

Endless real-world situations seem this way — for example, YouTube recordings or website content. Semi-supervised learning is applied everywhere from crawlers and content aggregation frameworks to image and speech recognition.

The capacity of semi-supervised learning how to consolidate the overfitting and ‘under fitting’ tendencies of supervised and unsupervised learning (individually) makes a model that can perform classification tasks splendidly while generalizing, given an insignificant amount of labelled data and a tremendous amount of unlabelled information.

Other than classification tasks, there exist a wide host of reasons for semi-supervised algorithms, for example, enhanced clustering and anomaly detection. Even though the field itself is moderately new, algorithms are ceaselessly being made and idealized as they find a huge interest in the present advanced scene. Semi-supervised learning is, indeed, the fate of Machine Learning.
